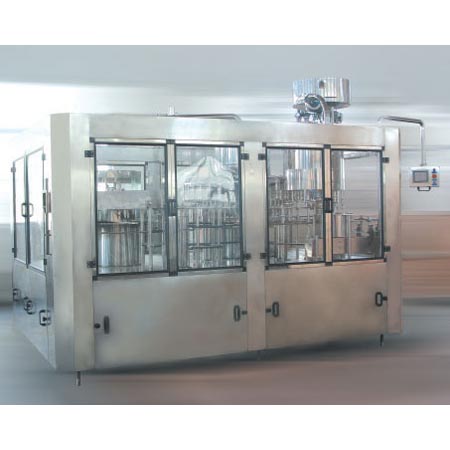

Rinsing/ washing + Filling + Capping
This series
equipment is used in the production of non-carbonated drink ,such as mineral
water purified water,etc. Washing, filling capping are integrated into one
machine.
1) The suspending
bottle-neck clamping design make the bottle stable during the high-speedmoving
conditions. By changing a few parts, it can meet the need of production of
different types of bottles easily.
2) The new generation of stainless steel
grab is adopted the grabs have no contact with the area above the bottle's screw
thread. Nozzles in the grab can guarantee the complete wash of the interior of
the bottle.
3) The advanced gravity filling technology used in this machine
makes the filling quick, steady accurate.
Model No |
CGX16166 |
Production Capacity(bph)(500ml) |
5000-6000 |
Applicable Bottle Type |
Bottle DiameterΦ50-Φ100mm;Height150-320mm; Bottle Volume:330-1500ml |
Applicable Cap Shape |
Plastic Screw Cap |
Air Source Pressure(Mpa) |
0.6 |
Air Consumption(m3/min) |
0.2 |
Total Power(kw) |
4.6 |
Washing head |
16 |
Filling head |
16 |
Capping head |
6 |
Total Weight(kg) |
3200 |
Dimension(L*W*H)(mm) |
2600 x 1830 x 2030 |
