ITEM NO.SAETB-90

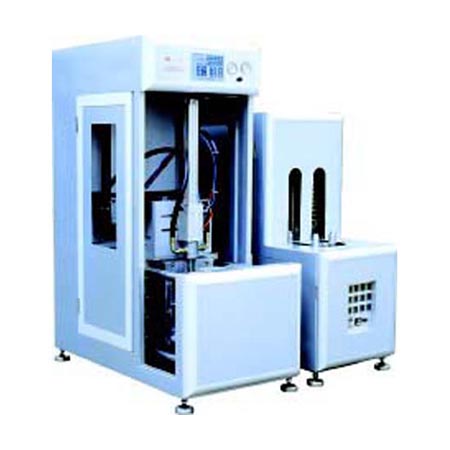

Semi-automatic PET 5gallon stretch blow moulding machine
This stretch blow moulding machine is a semi-automatic machine, especially used to produce 3-gallon 5-gallon bottles, is widely used to produce any shape of plastic containers from PET/PC &PE with neck finishes from 15mm. to 200 mm
|
TYPE |
ITEM |
UNIT |
TECHNICAL DATA |
|
CONTAINER |
Product material |
PET/PE | |
|
Container volume |
L |
5-6L(2-cavity) | |
|
Theoretical output |
Pcs/Hr |
18.9Litres (5gallon); 90pcs/hour | |
|
Preform length |
mm |
φ15-460 | |
|
Preform inner diameter |
mm |
φ15-200 | |
|
MOULDING |
Max.mould plate dimension (L×W) |
mm |
420×500 |
|
Max. mould thickness |
mm |
400 | |
|
Clamping force |
KN |
330 | |
|
Mould opening stroke |
mm |
330 | |
|
AIR |
High pressure air compressor |
M3/MPa |
≥1.2/3.0 |
|
Air pressure for blowing |
Mpa |
2.0-3.0 | |
|
Low pressure air compressor |
M3/MPa |
≥1.6/1.25 | |
|
AIR DRYER |
Air Freezing Dryer |
M3/Mpa |
≥1.0/3.0 |
|
MAIN MACHINE |
Power |
KW |
15 |
|
Voltage/Frequency |
V/HZ |
AC 380/50Hz (3-phase) | |
|
MACHINE SIZE AND WEIGHT |
Main Blower machine (L×W×H) |
M |
1.55×0.82×2.00 |
|
Main machine weight |
T |
1 | |
|
Pre-Heater (L×W×H) |
M |
2.42×0.65×1.60 | |
|
Pre-Heater weight |
T |
0.38 | |
|
High pressure air compressor (L×W×H) |
M |
1.90×0.75×1.50 | |
|
Low pressure air compressor (L×W×H) |
M |
1.85×0.70×1.50 | |
|
Air Freezing Dryer |
M |
1.05×0.60×1.10 | |
|
Air filters |
KG |
10×2pcs | |
|
SAFTY |
Auto-emergency alarm |
Safety inter-locking device | |
