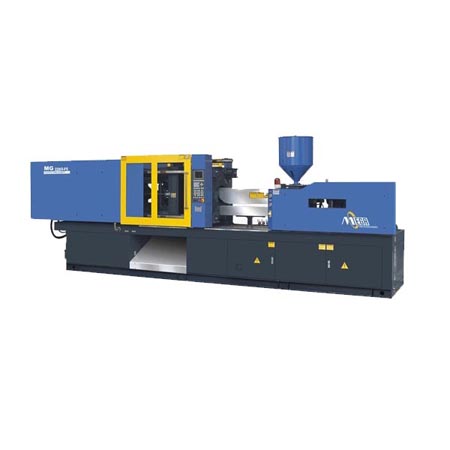

Model: SAETB-2680
Product description:
SPECIFICATION
SAETB-2680
A
B
C
INJECTION UNIT
Screw Diameter
mm
55
60
65
Screw L/D Ratio
L/D
21.8
20
18.4
Shot Size (Theoretical)
cm3
598
712
836
Injection Weight(PS)
g
538
641
752
Injection Rate
g/s
240
285
334
Plasticizing Capacity
g/s
38
45
52
Injection Pressure
Mpa
200
168
143
Screw Speed
rpm
0~190
CLAMPING UNIT
Clamp Tonnage
kN
268
Toggle Stroke
mm
550
Space Between Tie Bars
mm
570x570
Max. Mold Height
mm
600
Min. Mold Height
mm
230
Ejector Stroke
mm
150
Ejector Tonnage
kN
65
Ejector Number
Piece
9
OTHERS
Max. Pump Pressure
Mpa
16
Pump Motor Power
kW
30
Heater Power
kW
14.90
Machine Dimension(LxWxH)
m
6.1x1.5x2.2
Machine Weight
t
8.0
Hopper Capacity
L
50
Oil Tank Capacity
L
580
